B-H Loop 경자성시험기 MATS-2010H
Hysteresisgraph For Hard Materials
Automatic measurement of the demagnetization curve of permanent magnetic material such as ferrite,
AlNiCo, NdFeB, SmCo, etc. Accurate measurement of the magnetic characteristic parameters of
remanence Br, coercive force HcB, intrinsic coercive force HcJ and maximum magnetic energy product (BH)max.
Adopt ATS structure, users can customize different configuration as required: According to the intrinsic and
size of measured sample to decide the electromagnetic size and corresponding testing power supply;
Select different measuring coil and probe according to the option of measuring method.
Decide to whether choosing fixture in accordance with sample shape.
Decide to whether selecting heating installation or not according to the test requirement.

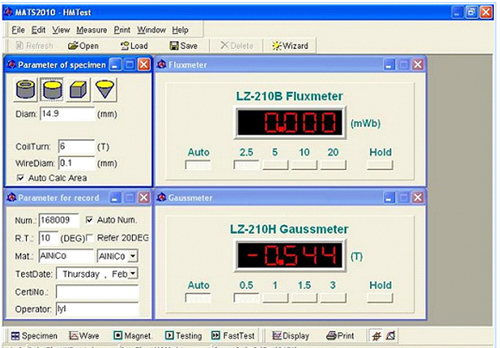

[ Software Interface ]

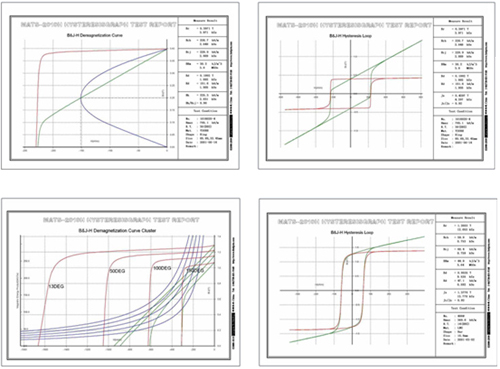

[ Test Reports ]

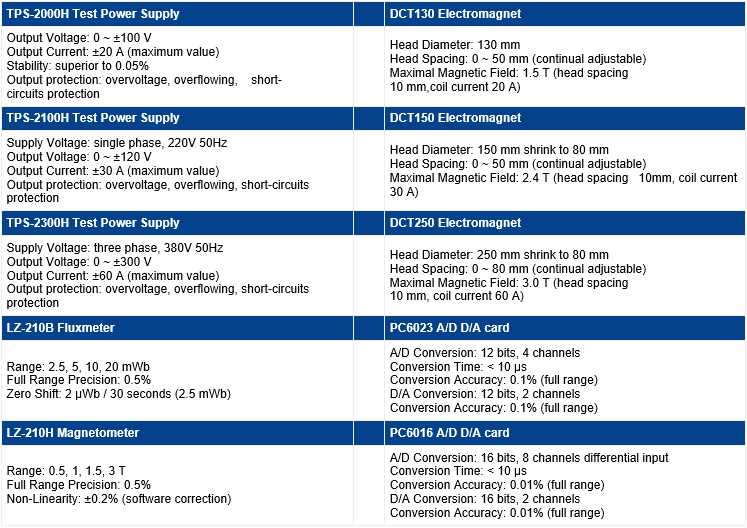

[ Hardware Parameters ]

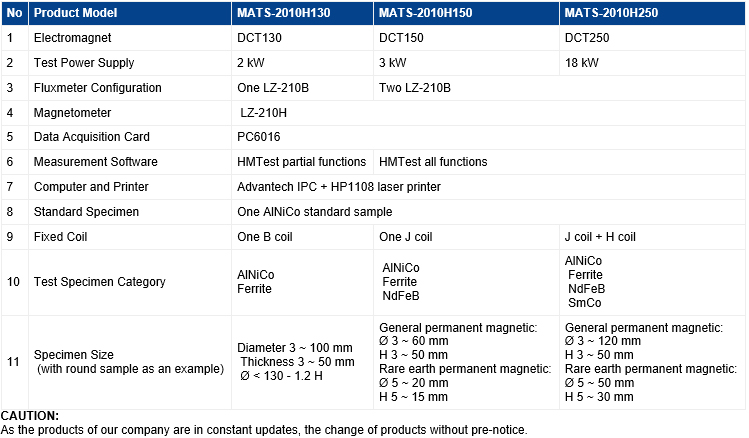

[ Configuration ]

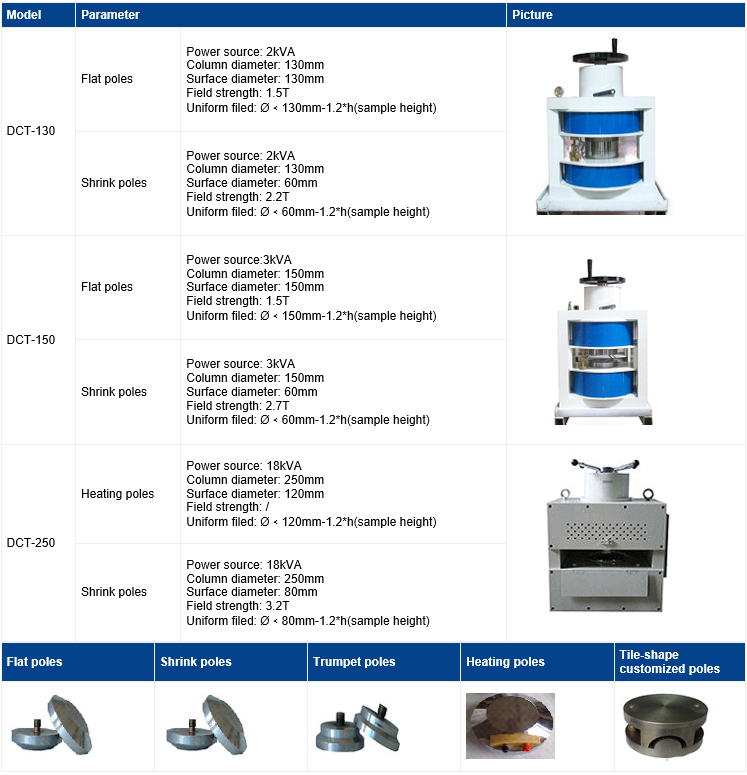

[ Accessories ]
